Compact Filter

Standard compact filters are used for the filtration of coarse and fine dust in air conditioning and ventilation systems, as pre-filter for HEPA filters, as well as in industrial applications.
Wetzel Technologies also offers special compact filter types with, for example, fully glued-in pleat packs and handle protection on the clean air side for use in gas turbines and compressors.
Compact filters are available in basic depths of 292mm and 400mm.
On request we supply all compact filters in the filterclasses M6 - F9 in "3V" or "4V" design, as well as in the subsizes 5/6 and 1/2.
All filters are available with glass fibre media or alternatively polypropylene media, which are considerably more robust, easier to handle and moisture resistant.
  • 4V Kompaktfilter, 292mm, ohne Griffschutz

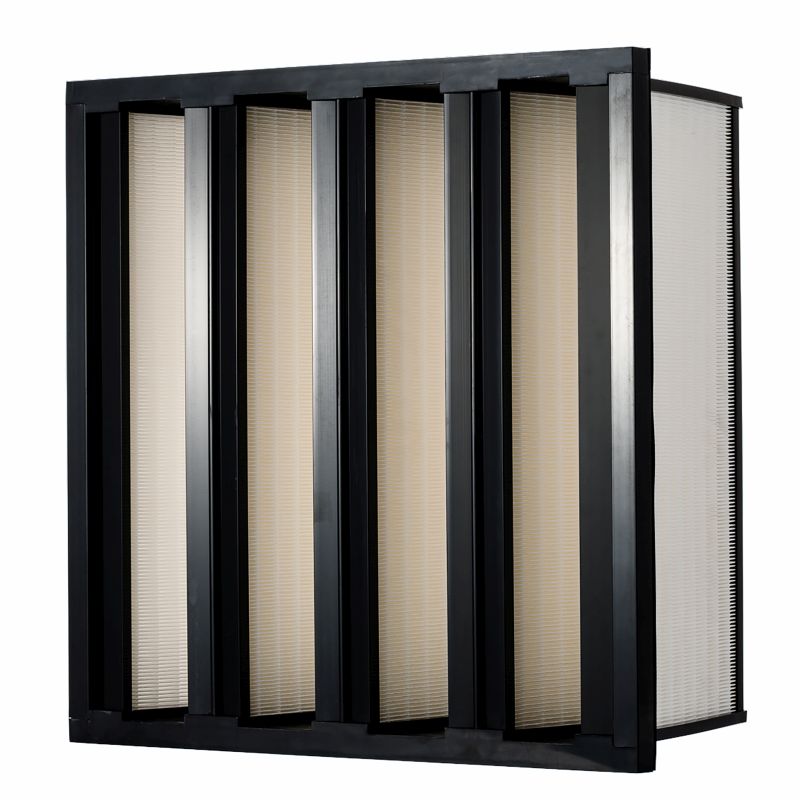

4V Compact Filter, 292mm, no handle protection
  • 4V Kompaktfilter, 400mm, mit Griffschutz
4V Compact Filter, 400mm, with handle protection

4V Compact Filter, glass fiber filter media, no handle protection

Article Art code SAP Filter Class EN779 2012 Filter Class ISO 16890 Frame material Gasket
(yes / no)		 Width (mm) Height (mm) Depth (mm) Surface Area (m²) Airflow (m³/h) Pressure Drop (Pa)
V bank Filter BX5M6-A1S2-A4_592x592x292 M6 ePM10 70% Plastic NO 592 592 292 20,2 3400 60
V bank Filter BX5F7-A1S3-A4_592x592x292 F7 ePM2,5 70% Plastic NO 592 592 292 20,2 3400 70
V bank Filter BX5F8-A1S4-A4_592x592x292 F8 ePM1 70% Plastic NO 592 592 292 20,2 3400 83
V bank Filter BX5F9-A1S5-A4_592x592x292 F9 ePM1 85% Plastic NO 592 592 292 20,2 3400 102
V bank Filter BX5M6-A1S2-A1_592x592x292 M6 ePM10 70% Plastic YES 592 592 292 20,2 3400 60
V bank Filter BX5F7-A1S3-A1_592x592x292 F7 ePM2,5 70% Plastic YES 592 592 292 20,2 3400 70
V bank Filter BX5F8-A1S4-A1_592x592x292 F8 ePM1 70% Plastic YES 592 592 292 20,2 3400 83
V bank Filter BX5F9-A1S5-A1_592x592x292 F9 ePM1 85% Plastic YES 592 592 292 20,2 3400 102

4V Compact Filter, glass fiber filter media, with handle protection

Article Art code SAP Filter Class EN779 2012 Filter Class ISO 16890 Frame material Gasket (yes/no) Width (mm) Height (mm) Depth (mm) Surface Area (m²) Airflow (m³/h) Pressure Drop (Pa)
V bank Filter BX5M6-A1S2-B4_592x592x292 M6 ePM10 70% Plastic NO 592 592 292 20,2 3400 63
V bank Filter BX5F7-A1S3-B4_592x592x292 F7 ePM2,5 70% Plastic NO 592 592 292 20,2 3400 74
V bank Filter BX5F8-A1S4-B4_592x592x292 F8 ePM1 70% Plastic NO 592 592 292 20,2 3400 86
V bank Filter BX5F9-A1S5-B4_592x592x292 F9 ePM1 85% Plastic NO 592 592 292 20,2 3400 105
V bank Filter BX5M6-A1S2-B1_592x592x292 M6 ePM10 70% Plastic YES 592 592 292 20,2 3400 63
V bank Filter BX5F7-A1S3-B1_592x592x292 F7 ePM2,5 70% Plastic YES 592 592 292 20,2 3400 74
V bank Filter BX5F8-A1S4-B1_592x592x292 F8 ePM1 70% Plastic YES 592 592 292 20,2 3400 86
V bank Filter BX5F9-A1S5-B1_592x592x292 F9 ePM1 85% Plastic YES 592 592 292 20,2 3400 105

4V Compact Filter, polypropylene filter media, no handle protection

Article Art code SAP Filter Class EN779 2012 Filter Class ISO 16890 Frame material Gasket (yes/no) Width (mm) Height (mm) Depth (mm) Surface Area (m²) Airflow (m³/h) Pressure Drop (Pa)
V bank Filter BX5M5-A1P1-A4_592x592x292 M5   Plastic NO 592 592 292 20,2 3400 65
V bank Filter BX5M6-A1P2-A4_592x592x292 M6   Plastic NO 592 592 292 20,2 3400 75
V bank Filter BX5F7-A1P3-A4_592x592x292 F7   Plastic NO 592 592 292 20,2 3400 86
V bank Filter BX5F8-A1P4-A4_592x592x292 F8   Plastic NO 592 592 292 20,2 3400 97
V bank Filter BX5F9-A1P5-A4_592x592x292 F9   Plastic NO 592 592 292 20,2 3400 128
V bank Filter BX5M5-A1P1-A1_592x592x292 M5   Plastic YES 592 592 292 20,2 3400 65
V bank Filter BX5M6-A1P2-A1_592x592x292 M6   Plastic YES 592 592 292 20,2 3400 75
V bank Filter BX5F7-A1P3-A1_592x592x292 F7   Plastic YES 592 592 292 20,2 3400 86
V bank Filter BX5F8-A1P4-A1_592x592x292 F8   Plastic YES 592 592 292 20,2 3400 97
V bank Filter BX5F9-A1P5-A1_592x592x292 F9   Plastic YES 592 592 292 20,2 3400 128

4V Compact Filter, polypropylene filter media, with handle protection

Article Art code SAP Filter Class EN779 2012 Filter Class ISO 16890 Frame material Gasket (yes/no) Width (mm) Height (mm) Depth (mm) Surface Area (m²) Airflow (m³/h) Pressure Drop (Pa)
V bank Filter BX5M5-A1P1-B4_592x592x292 M5   Plastic NO 592 592 292 20,2 3400 67
V bank Filter BX5M6-A1P2-B4_592x592x292 M6   Plastic NO 592 592 292 20,2 3400 78
V bank Filter BX5F7-A1P3-B4_592x592x292 F7   Plastic NO 592 592 292 20,2 3400 89
V bank Filter BX5F8-A1P4-B4_592x592x292 F8   Plastic NO 592 592 292 20,2 3400 103
V bank Filter BX5F9-A1P5-B4_592x592x292 F9   Plastic NO 592 592 292 20,2 3400 131
V bank Filter BX5M5-A1P1-B1_592x592x292 M5   Plastic YES 592 592 292 20,2 3400 67
V bank Filter BX5M6-A1P2-B1_592x592x292 M6   Plastic YES 592 592 292 20,2 3400 78
V bank Filter BX5F7-A1P3-B1_592x592x292 F7   Plastic YES 592 592 292 20,2 3400 89
V bank Filter BX5F8-A1P4-B1_592x592x292 F8   Plastic YES 592 592 292 20,2 3400 103
V bank Filter BX5F9-A1P5-B1_592x592x292 F9   Plastic YES 592 592 292 20,2 3400 131

We look forward to your request.
