High temperature filters

High temperature cassette filters are made of temperature resistant micro glass fibre paper and are available with an aluminium frame, suitable for use up to approx. 380°C.
Wetzel Technologies produces high-temperature filter packs in expanded metal mesh as well as high-temperature cassette filters with extruded aluminium frames in the basic depths 22mm, 40mm, 55mm, 78mm, 120mm and in 292mm depth with header frame, double header frame or in the "box type" variant.
HT cassette filters in basic depths up to 78mm are available in all commercially available dimensions and can be used both for installation on the raw air side and for installation on the clean air side. Equipped with handle protection on both sides, these HT cassette filters meet particularly high requirements for mechanical stability and process reliability.
Wetzel Technologies HT cassette filters are available in filter classes M5 - F8
  • Hochtemperaturfilter

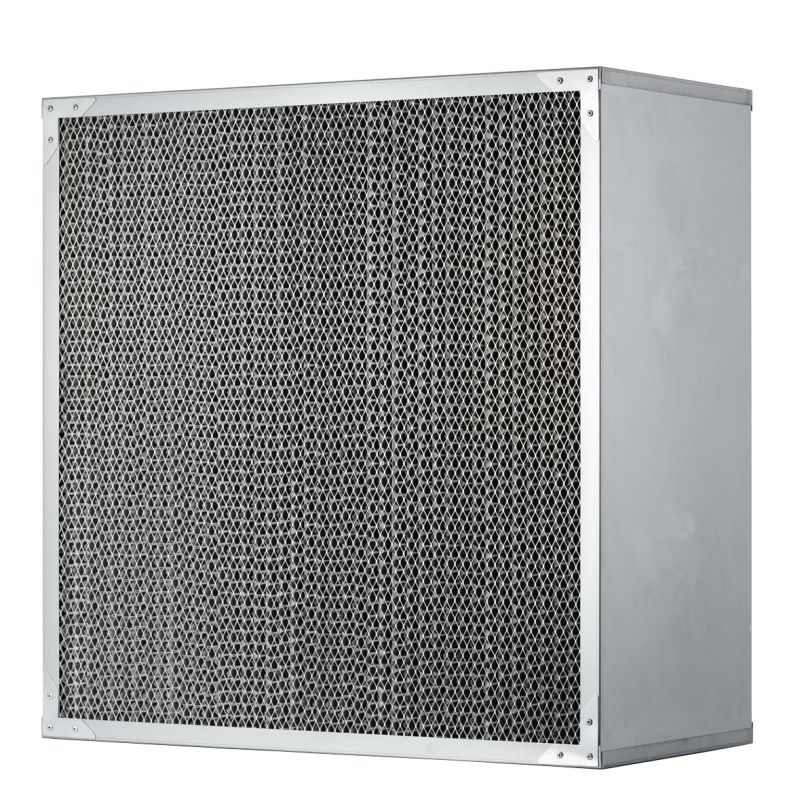

High temperature cassette filters in 292mm depth are available with or without header frame in filter class M6 -F8.

Article name Art code SAP Filter Class EN779 2012 Filter Class ISO 16890 Gasket (CAS) / (DAS) / (Both sides) Width (mm) Height (mm) Depth (mm) Surface Area (m²) Airflow (m³/h) Pressure Drop (Pa)
High Temp Filter BX3M6-A1J2-B1_610x610x292 M6 ePM10 75% CAS 610 610 292 14,8 3400 95
High Temp Filter BX3M6-A1J2-B1_610x305x292 M6 ePM10 75% CAS 610 305 292 7,4 1700 95
High Temp Filter BX3M6-A1J2-B1_592x592x292 M6 ePM10 75% CAS 592 592 292 14 3400 105
High Temp Filter BX3M6-A1J2-B1_592x287x292 M6 ePM10 75% CAS 592 287 292 7 1700 105
High Temp Filter BX3F8-A1J4-B1_610x610x292 F8 ePM2,5 75% CAS 610 610 292 14,8 3400 150
High Temp Filter BX3F8-A1J4-B1_610x305x292 F8 ePM2,5 75% CAS 610 305 292 7,4 1700 150
High Temp Filter BX3F8-A1J4-B1_592x592x292 F8 ePM2,5 75% CAS 592 592 292 14 3400 160
High Temp Filter BX3F8-A1J4-B1_592x287x292 F8 ePM2,5 75% CAS 592 287 292 7 1700 160
High Temp Filter BX3M6-A1J2-B2_610x610x292 M6 ePM10 75% DAS 610 610 292 14,8 3400 95
High Temp Filter BX3M6-A1J2-B2_610x305x292 M6 ePM10 75% DAS 610 305 292 7,4 1700 95
High Temp Filter BX3M6-A1J2-B2_592x592x292 M6 ePM10 75% DAS 592 592 292 14 3400 105
High Temp Filter BX3M6-A1J2-B2_592x287x292 M6 ePM10 75% DAS 592 287 292 7 1700 105
High Temp Filter BX3F8-A1J4-B2_610x610x292 F8 ePM2,5 75% DAS 610 610 292 14,8 3400 150
High Temp Filter BX3F8-A1J4-B2_610x305x292 F8 ePM2,5 75% DAS 610 305 292 7,4 1700 150
High Temp Filter BX3F8-A1J4-B2_592x592x292 F8 ePM2,5 75% DAS 592 592 292 14 3400 160
High Temp Filter BX3F8-A1J4-B2_592x287x292 F8 ePM2,5 75% DAS 592 287 292 7 1700 160
High Temp Filter BX3M6-A1J2-B3_610x610x292 M6 ePM10 75% Both sides 610 610 292 14,8 3400 95
High Temp Filter BX3M6-A1J2-B3_610x305x292 M6 ePM10 75% Both sides 610 305 292 7,4 1700 95
High Temp Filter BX3M6-A1J2-B3_592x592x292 M6 ePM10 75% Both sides 592 592 292 14 3400 105
High Temp Filter BX3M6-A1J2-B3_592x287x292 M6 ePM10 75% Both sides 592 287 292 7 1700 105
High Temp Filter BX3F8-A1J4-B3_610x610x292 F8 ePM2,5 75% Both sides 610 610 292 14,8 3400 150
High Temp Filter BX3F8-A1J4-B3_610x305x292 F8 ePM2,5 75% Both sides 610 305 292 7,4 1700 150
High Temp Filter BX3F8-A1J4-B3_592x592x292 F8 ePM2,5 75% Both sides 592 592 292 14 3400 160
High Temp Filter BX3F8-A1J4-B3_592x287x292 F8 ePM2,5 75% Both sides 592 287 292 7 1700 160
  • Hochtemperaturfilter
  • Hochtemperaturfilter

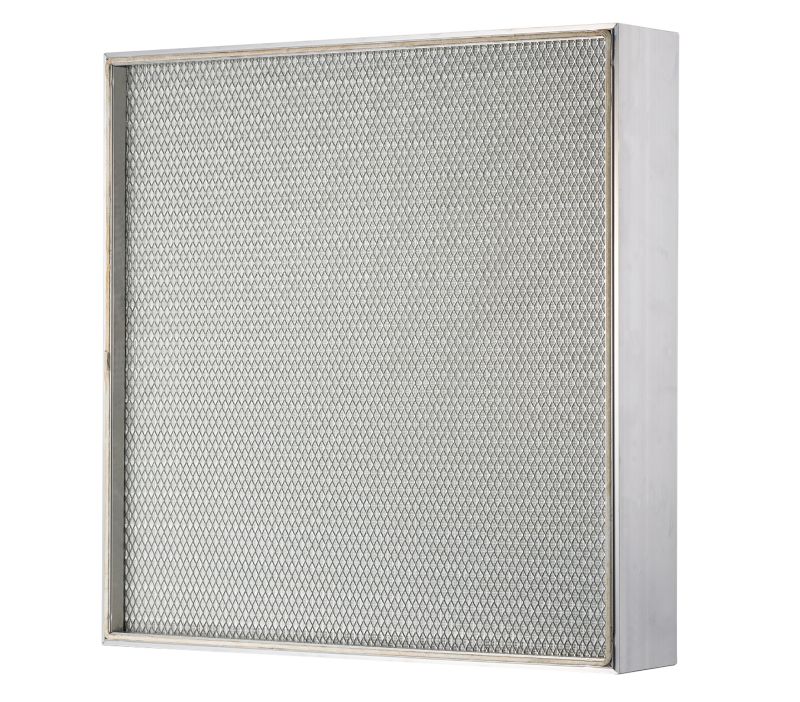

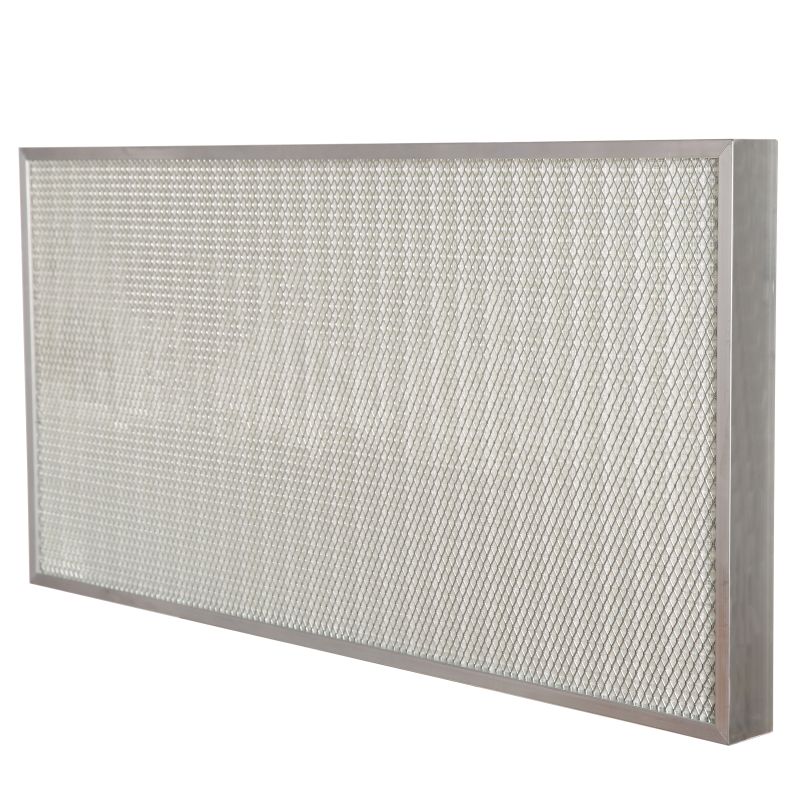

High temperature cassette filters in 55 and 78mm depths are available with protection grid on both sides and aluminium frame in filter class M6 – F8.

Article name Art code SAP Filter Class EN779 2012 Filter Class ISO 16890 Gasket (CAS) / (DAS) / (Both sides) Width (mm) Height (mm) Depth (mm) Surface Area (m²) Airflow (m³/h) Pressure Drop (Pa)
High Temp Filter BX1M6-G2S2-C1_610x610x55 M6 ePM10 75% CAS 610 610 55 6,52 1600 50
High Temp Filter BX1M6-G2S2-C1_457x915x55 M6 ePM10 75% CAS 457 915 55 7,31 1800 50
High Temp Filter BX1M6-G3S2-C1_457x915x78 M6 ePM10 75% CAS 457 915 78 8,12 1800 50
High Temp Filter BX1M6-G4S2-C1-610x610x120 M6 ePM10 75% CAS 610 610 120 12,9 4250 150
High Temp Filter BX1F8-G2J4-C1_610x610x55 F8 ePM2,5 75% CAS 610 610 55 6,52 1600 90
High Temp Filter BX1F8-G2J4-C1_457x915x55 F8 ePM2,5 75% CAS 457 915 55 7,31 1800 90
High Temp Filter BX1F8-G3J4-C1_457x915x78 F8 ePM2,5 75% CAS 457 915 78 8,12 1800 90
High Temp Filter BX1F8-G4J4-C1_610x610x120 F8 ePM2,5 75% CAS 610 610 120 12,9 4250 210
High Temp Filter BX1M6-G2S2-C2_610x610x55 M6 ePM10 75% DAS 610 610 55 6,52 1600 50
High Temp Filter BX1M6-G2S2-C2_457x915x55 M6 ePM10 75% DAS 457 915 55 7,31 1800 50
High Temp Filter BX1M6-G3S2-C2_457x915x78 M6 ePM10 75% DAS 457 915 78 8,12 1800 50
High Temp Filter BX1M6-G4S2-C2-610x610x120 M6 ePM10 75% DAS 610 610 120 12,9 4250 150
High Temp Filter BX1F8-G2J4-C2_610x610x55 F8 ePM2,5 75% DAS 610 610 55 6,52 1600 90
High Temp Filter BX1F8-G2J4-C2_457x915x55 F8 ePM2,5 75% DAS 457 915 55 7,31 1800 90
High Temp Filter BX1F8-G3J4-C2_457x915x78 F8 ePM2,5 75% DAS 457 915 78 8,12 1800 90
High Temp Filter BX1F8-G4J4-C2_610x610x120 F8 ePM2,5 75% DAS 610 610 120 12,9 4250 210



We look forward to your request.
