Schwebstofffilter
Wetzel Technologies EPA und HEPA Filter werden in Reinräumen und reinen Werkbänken in Krankenhäusern, der Pharmaindustrie, in der Mikroelektronik, in sensiblen Bereichen der Lebensmittel und Getränkeproduktion sowie der Chemieindustrie überall dort eingesetzt, wo höchste Anforderungen an die Reinluft und Sterilität gestellt werden.
Die Filterrahmen der Minipleat Filter bis zur Bautiefe 93mm bestehen aus stranggepresstem Aluminium.
Filter in 150mm, 220mm und 292mm Bautiefe können in galvanisiertem Stahlblech, Edelstahlblech oder mit Kunststoffrahmen hergestellt werden.
Die standardmäßig beidseitig angebrachten Griffschutze der Panelfilter sind aus pulverbeschichtetem Streckmetall hergestellt.
Jedes Filterelement wird gemäß geltenden Vorschriften einzelgeprüft und auf Wunsch mit einem Prüfzertifikat ausgeliefert.
Wetzel Technologies produziert Minipleat - Filter bis 93mm Bautiefe, Standard HEPA Filter in 150mm, 220mm und 292mm Bautiefe aber auch Hochvolumen HEPA Filter bei denen die Minipleat Faltenpakete V förmig angeordnet sind.

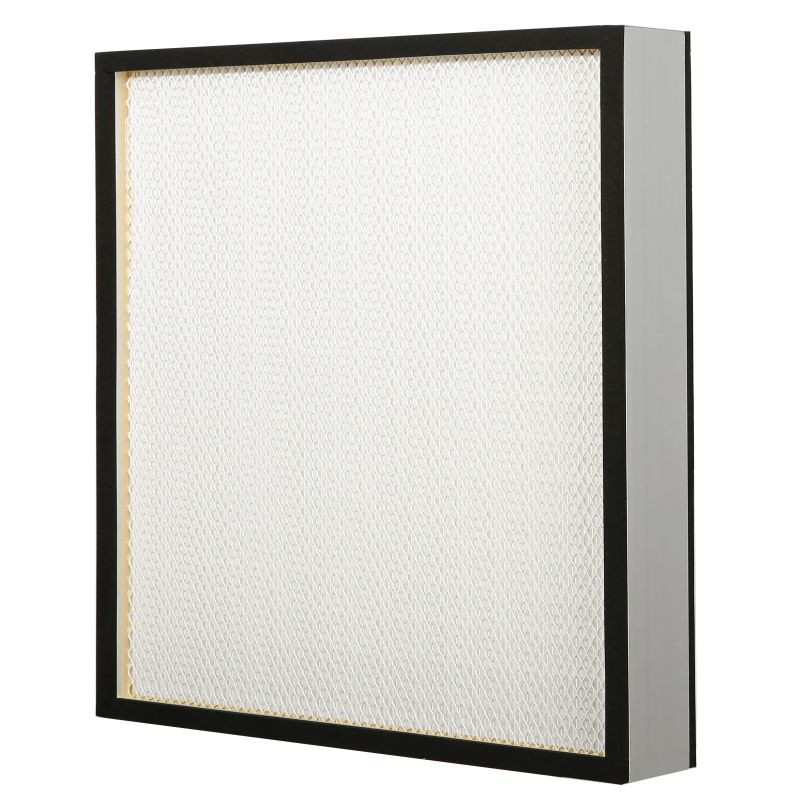

Alu Minipleat – HEPA Filter, aufgeschäumte Endlosdichtung, Bautiefe 50mm
| Article name | Art code SAP | Filter Class DIN 1822 | Width (mm) | Height (mm) | Depth (mm) | Surface Area (m²) | Airflow (m³/h) | Pressure Drop (Pa) |
|---|---|---|---|---|---|---|---|---|
| Minipleat - HEPA panel, 50mm | BX2E10-A2Z1-A2_305x305x50 | E10 | 305 | 305 | 50 | 1.6 | 160/384 | 50/120 |
| Minipleat - HEPA panel, 50mm | BX2E10-A2Z1-A2_305x610x50 | E10 | 305 | 610 | 50 | 3.1 | 323/776 | 50/120 |
| Minipleat - HEPA panel, 50mm | BX2E10-A2Z1-A2_610x610x50 | E10 | 610 | 610 | 50 | 6.4 | 654/1570 | 50/120 |
| Minipleat - HEPA panel, 50mm | BX2E10-A2Z1-A2_762x610x50 | E10 | 762 | 610 | 50 | 8.0 | 819/1966 | 50/120 |
| Minipleat - HEPA panel, 50mm | BX2E11-A2Z2-A2_305x305x50 | E11 | 305 | 305 | 50 | 1.6 | 160/384 | 75/180 |
| Minipleat - HEPA panel, 50mm | BX2E11-A2Z2-A2_305x610x50 | E11 | 305 | 610 | 50 | 3.1 | 323/776 | 75/180 |
| Minipleat - HEPA panel, 50mm | BX2E11-A2Z2-A2_610x610x50 | E11 | 610 | 610 | 50 | 6.4 | 654/1570 | 75/180 |
| Minipleat - HEPA panel, 50mm | BX2E11-A2Z2-A2_762x610x50 | E11 | 762 | 610 | 50 | 8.0 | 819/1966 | 75/180 |
| Minipleat - HEPA panel, 50mm | BX2E12-A2Z3-A2_305x305x50 | E12 | 305 | 305 | 50 | 1.6 | 160/384 | 100/240 |
| Minipleat - HEPA panel, 50mm | BX2E12-A2Z3-A2_305x610x50 | E12 | 305 | 610 | 50 | 3.1 | 323/776 | 100/240 |
| Minipleat - HEPA panel, 50mm | BX2E12-A2Z3-A2_610x610x50 | E12 | 610 | 610 | 50 | 6.4 | 654/1570 | 100/240 |
| Minipleat - HEPA panel, 50mm | BX2E12-A2Z3-A2_762x610x50 | E12 | 762 | 610 | 50 | 8.0 | 819/1966 | 100/240 |
| Minipleat - HEPA panel, 50mm | BX2H13-A2Z4-A2_305x305x50 | H13 | 305 | 305 | 50 | 1.6 | 160/384 | 125/249 |
| Minipleat - HEPA panel, 50mm | BX2H13-A2Z4-A2_305x610x50 | H13 | 305 | 610 | 50 | 3.1 | 323/776 | 125/249 |
| Minipleat - HEPA panel, 50mm | BX2H13-A2Z4-A2_610x610x50 | H13 | 610 | 610 | 50 | 6.4 | 654/1570 | 125/249 |
| Minipleat - HEPA panel, 50mm | BX2H13-A2Z4-A2_762x610x50 | H13 | 762 | 610 | 50 | 8.0 | 819/1966 | 125/249 |
| Minipleat - HEPA panel, 50mm | BX2H14-A2Z5-A2_305x305x50 | H14 | 305 | 305 | 50 | 1.6 | 160/384 | 150/249 |
| Minipleat - HEPA panel, 50mm | BX2H14-A2Z5-A2_305x610x50 | H14 | 305 | 610 | 50 | 3.1 | 323/776 | 150/249 |
| Minipleat - HEPA panel, 50mm | BX2H14-A2Z5-A2_610x610x50 | H14 | 610 | 610 | 50 | 6.4 | 654/1570 | 150/249 |
| Minipleat - HEPA panel, 50mm | BX2H14-A2Z5-A2_762x610x50 | H14 | 762 | 610 | 50 | 8.0 | 819/1966 | 150/249 |
Alu Minipleat – HEPA Filter, aufgeschäumte Endlosdichtung, Bautiefe 65mm
| Article name | Art code SAP | Filter Class DIN 1822 | Width (mm) | Height (mm) | Depth (mm) | Surface Area (m²) | Airflow (m³/h) | Pressure Drop (Pa) |
|---|---|---|---|---|---|---|---|---|
| Minipleat - HEPA panel, 65mm | BX2E10-A3Z1-A2_305x305x65 | E10 | 305 | 305 | 65 | 1.6 | 160/384 | 40/96 |
| Minipleat - HEPA panel, 65mm | BX2E10-A3Z1-A2_305x610x65 | E10 | 305 | 610 | 65 | 3.1 | 323/776 | 40/96 |
| Minipleat - HEPA panel, 65mm | BX2E10-A3Z1-A2_610x610x65 | E10 | 610 | 610 | 65 | 6.4 | 654/1570 | 40/96 |
| Minipleat - HEPA panel, 65mm | BX2E10-A3Z1-A2_762x610x65 | E10 | 762 | 610 | 65 | 8.0 | 819/1966 | 40/96 |
| Minipleat - HEPA panel, 65mm | BX2E11-A3Z2-A2_305x305x65 | E11 | 305 | 305 | 65 | 1.6 | 160/384 | 65/156 |
| Minipleat - HEPA panel, 65mm | BX2E11-A3Z2-A2_305x610x65 | E11 | 305 | 610 | 65 | 3.1 | 323/776 | 65/156 |
| Minipleat - HEPA panel, 65mm | BX2E11-A3Z2-A2_610x610x65 | E11 | 610 | 610 | 65 | 6.4 | 654/1570 | 65/156 |
| Minipleat - HEPA panel, 65mm | BX2E11-A3Z2-A2_762x610x65 | E11 | 762 | 610 | 65 | 8.0 | 819/1966 | 65/156 |
| Minipleat - HEPA panel, 65mm | BX2E12-A3Z3-A2_305x305x65 | E12 | 305 | 305 | 65 | 1.6 | 160/384 | 90/216 |
| Minipleat - HEPA panel, 65mm | BX2E12-A3Z3-A2_305x610x65 | E12 | 305 | 610 | 65 | 3.1 | 323/776 | 90/216 |
| Minipleat - HEPA panel, 65mm | BX2E12-A3Z3-A2_610x610x65 | E12 | 610 | 610 | 65 | 6.4 | 654/1570 | 90/216 |
| Minipleat - HEPA panel, 65mm | BX2E12-A3Z3-A2_762x610x65 | E12 | 762 | 610 | 65 | 8.0 | 819/1966 | 90/216 |
| Minipleat - HEPA panel, 65mm | BX2H13-A3Z4-A2_305x305x65 | H13 | 305 | 305 | 65 | 1.6 | 160/384 | 115/249 |
| Minipleat - HEPA panel, 65mm | BX2H13-A3Z4-A2_305x610x65 | H13 | 305 | 610 | 65 | 3.1 | 323/776 | 115/249 |
| Minipleat - HEPA panel, 65mm | BX2H13-A3Z4-A2_610x610x65 | H13 | 610 | 610 | 65 | 6.4 | 654/1570 | 115/249 |
| Minipleat - HEPA panel, 65mm | BX2H13-A3Z4-A2_762x610x65 | H13 | 762 | 610 | 65 | 8.0 | 819/1966 | 115/249 |
| Minipleat - HEPA panel, 65mm | BX2H14-A3Z5-A2_305x305x65 | H14 | 305 | 305 | 65 | 1.6 | 160/384 | 140/249 |
| Minipleat - HEPA panel, 65mm | BX2H14-A3Z5-A2_305x610x65 | H14 | 305 | 610 | 65 | 3.1 | 323/776 | 140/249 |
| Minipleat - HEPA panel, 65mm | BX2H14-A3Z5-A2_610x610x65 | H14 | 610 | 610 | 65 | 6.4 | 654/1570 | 140/249 |
| Minipleat - HEPA panel, 65mm | BX2H14-A3Z5-A2_762x610x65 | H14 | 762 | 610 | 65 | 8.0 | 819/1966 | 140/249 |
Alu Minipleat – HEPA Filter, aufgeschäumte Endlosdichtung, Bautiefe 69mm
| Article name | Art code SAP | Filter Class DIN 1822 | Width (mm) | Height (mm) | Depth (mm) | Surface Area (m²) | Airflow (m³/h) | Pressure Drop (Pa) |
|---|---|---|---|---|---|---|---|---|
| Minipleat - HEPA panel, 69mm | BX2E10-A4Z1-A2_305x305x69 | E10 | 305 | 305 | 69 | 1.6 | 160/384 | 35/84 |
| Minipleat - HEPA panel, 69mm | BX2E10-A4Z1-A2_305x610x69 | E10 | 305 | 610 | 69 | 3.1 | 323/776 | 35/84 |
| Minipleat - HEPA panel, 69mm | BX2E10-A4Z1-A2_610x610x69 | E10 | 610 | 610 | 69 | 6.4 | 654/1570 | 35/84 |
| Minipleat - HEPA panel, 69mm | BX2E10-A4Z1-A2_762x610x69 | E10 | 762 | 610 | 69 | 8.0 | 819/1966 | 35/84 |
| Minipleat - HEPA panel, 69mm | BX2E11-A4Z2-A2_305x305x69 | E11 | 305 | 305 | 69 | 1.6 | 160/384 | 60/144 |
| Minipleat - HEPA panel, 69mm | BX2E11-A4Z2-A2_305x610x69 | E11 | 305 | 610 | 69 | 3.1 | 323/776 | 60/144 |
| Minipleat - HEPA panel, 69mm | BX2E11-A4Z2-A2_610x610x69 | E11 | 610 | 610 | 69 | 6.4 | 654/1570 | 60/144 |
| Minipleat - HEPA panel, 69mm | BX2E11-A4Z2-A2_762x610x69 | E11 | 762 | 610 | 69 | 8.0 | 819/1966 | 60/144 |
| Minipleat - HEPA panel, 69mm | BX2E12-A4Z3-A2_305x305x69 | E12 | 305 | 305 | 69 | 1.6 | 160/384 | 85/204 |
| Minipleat - HEPA panel, 69mm | BX2E12-A4Z3-A2_305x610x69 | E12 | 305 | 610 | 69 | 3.1 | 323/776 | 85/204 |
| Minipleat - HEPA panel, 69mm | BX2E12-A4Z3-A2_610x610x69 | E12 | 610 | 610 | 69 | 6.4 | 654/1570 | 85/204 |
| Minipleat - HEPA panel, 69mm | BX2E12-A4Z3-A2_762x610x69 | E12 | 762 | 610 | 69 | 8.0 | 819/1966 | 85/204 |
| Minipleat - HEPA panel, 69mm | BX2H13-A4Z4-A2_305x305x69 | H13 | 305 | 305 | 69 | 1.6 | 160/384 | 110/249 |
| Minipleat - HEPA panel, 69mm | BX2H13-A4Z4-A2_305x610x69 | H13 | 305 | 610 | 69 | 3.1 | 323/776 | 110/249 |
| Minipleat - HEPA panel, 69mm | BX2H13-A4Z4-A2_610x610x69 | H13 | 610 | 610 | 69 | 6.4 | 654/1570 | 110/249 |
| Minipleat - HEPA panel, 69mm | BX2H13-A4Z4-A2_762x610x69 | H13 | 762 | 610 | 69 | 8.0 | 819/1966 | 110/249 |
| Minipleat - HEPA panel, 69mm | BX2H14-A4Z5-A2_305x305x69 | H14 | 305 | 305 | 69 | 1.6 | 160/384 | 135/249 |
| Minipleat - HEPA panel, 69mm | BX2H14-A4Z5-A2_305x610x69 | H14 | 305 | 610 | 69 | 3.1 | 323/776 | 135/249 |
| Minipleat - HEPA panel, 69mm | BX2H14-A4Z5-A2_610x610x69 | H14 | 610 | 610 | 69 | 6.4 | 654/1570 | 135/249 |
| Minipleat - HEPA panel, 69mm | BX2H14-A4Z5-A2_762x610x69 | H14 | 762 | 610 | 69 | 8.0 | 819/1966 | 135/249 |
Alu Minipleat – HEPA Filter, aufgeschäumte Endlosdichtung, Bautiefe 80mm
| Article name | Art code SAP | Filter Class DIN 1822 | Width (mm) | Height (mm) | Depth (mm) | Surface Area (m²) | Airflow (m³/h) | Pressure Drop (Pa) |
|---|---|---|---|---|---|---|---|---|
| Minipleat - HEPA panel, 80mm | BX2E10-A5Z1-A2_305x305x80 | E10 | 305 | 305 | 80 | 1.6 | 160/384 | 30/72 |
| Minipleat - HEPA panel, 80mm | BX2E10-A5Z1-A2_305x610x80 | E10 | 305 | 610 | 80 | 3.1 | 323/776 | 30/72 |
| Minipleat - HEPA panel, 80mm | BX2E10-A5Z1-A2_610x610x80 | E10 | 610 | 610 | 80 | 6.4 | 654/1570 | 30/72 |
| Minipleat - HEPA panel, 80mm | BX2E10-A5Z1-A2_762x610x80 | E10 | 762 | 610 | 80 | 8.0 | 819/1966 | 30/72 |
| Minipleat - HEPA panel, 80mm | BX2E11-A5Z2-A2_305x305x80 | E11 | 305 | 305 | 80 | 1.6 | 160/384 | 55/132 |
| Minipleat - HEPA panel, 80mm | BX2E11-A5Z2-A2_305x610x80 | E11 | 305 | 610 | 80 | 3.1 | 323/776 | 55/132 |
| Minipleat - HEPA panel, 80mm | BX2E11-A5Z2-A2_610x610x80 | E11 | 610 | 610 | 80 | 6.4 | 654/1570 | 55/132 |
| Minipleat - HEPA panel, 80mm | BX2E11-A5Z2-A2_762x610x80 | E11 | 762 | 610 | 80 | 8.0 | 819/1966 | 55/132 |
| Minipleat - HEPA panel, 80mm | BX2E12-A5Z3-A2_305x305x80 | E12 | 305 | 305 | 80 | 1.6 | 160/384 | 80/192 |
| Minipleat - HEPA panel, 80mm | BX2E12-A5Z3-A2_305x610x80 | E12 | 305 | 610 | 80 | 3.1 | 323/776 | 80/192 |
| Minipleat - HEPA panel, 80mm | BX2E12-A5Z3-A2_610x610x80 | E12 | 610 | 610 | 80 | 6.4 | 654/1570 | 80/192 |
| Minipleat - HEPA panel, 80mm | BX2E12-A5Z3-A2_762x610x80 | E12 | 762 | 610 | 80 | 8.0 | 819/1966 | 80/192 |
| Minipleat - HEPA panel, 80mm | BX2H13-A5Z4-A2_305x305x80 | H13 | 305 | 305 | 80 | 1.6 | 160/384 | 105/249 |
| Minipleat - HEPA panel, 80mm | BX2H13-A5Z4-A2_305x610x80 | H13 | 305 | 610 | 80 | 3.1 | 323/776 | 105/249 |
| Minipleat - HEPA panel, 80mm | BX2H13-A5Z4-A2_610x610x80 | H13 | 610 | 610 | 80 | 6.4 | 654/1570 | 105/249 |
| Minipleat - HEPA panel, 80mm | BX2H13-A5Z4-A2_762x610x80 | H13 | 762 | 610 | 80 | 8.0 | 819/1966 | 105/249 |
| Minipleat - HEPA panel, 80mm | BX2H14-A5Z5-A2_305x305x80 | H14 | 305 | 305 | 80 | 1.6 | 160/384 | 130/249 |
| Minipleat - HEPA panel, 80mm | BX2H14-A5Z5-A2_305x610x80 | H14 | 305 | 610 | 80 | 3.1 | 323/776 | 130/249 |
| Minipleat - HEPA panel, 80mm | BX2H14-A5Z5-A2_610x610x80 | H14 | 610 | 610 | 80 | 6.4 | 654/1570 | 130/249 |
| Minipleat - HEPA panel, 80mm | BX2H14-A5Z5-A2_762x610x80 | H14 | 762 | 610 | 80 | 8.0 | 819/1966 | 130/249 |
Alu Minipleat – HEPA Filter, Gel Dichtung, Bautiefe 93mm
| Article name | Art code SAP | Filter Class DIN 1822 | Width (mm) | Height (mm) | Depth (mm) | Surface Area (m²) | Airflow (m³/h) | Pressure Drop (Pa) |
|---|---|---|---|---|---|---|---|---|
| Minipleat - HEPA panel, 93mm, gel | BX2H13-B1Z4-C1_484x484x93 | H13 | 484 | 484 | 93 | 8,8 | 345/829 | 110/249 |
| Minipleat - HEPA panel, 93mm, gel | BX2H13-B1Z4-C1_500x500x93 | H13 | 500 | 500 | 93 | 9,5 | 374/890 | 110/249 |
| Minipleat - HEPA panel, 93mm, gel | BX2H13-B1Z4-C1_610x610x93 | H13 | 610 | 610 | 93 | 14,5 | 573/1374 | 110/249 |
| Minipleat - HEPA panel, 93mm, gel | BX2H13-B1Z4-C1_630x630x93 | H13 | 630 | 630 | 93 | 15,4 | 614/1473 | 110/249 |
| Minipleat - HEPA panel, 93mm, gel | BX2H13-B1Z4-C1_762x610x93 | H13 | 762 | 610 | 93 | 18 | 727/1745 | 110/249 |
| Minipleat - HEPA panel, 93mm, gel | BX2H13-B1Z4-C1_915x610x93 | H13 | 915 | 610 | 93 | 21,8 | 882/2117 | 110/249 |
| Minipleat - HEPA panel, 93mm, gel | BX2H13-B1Z4-C1_1220x610x93 | H13 | 1220 | 610 | 93 | 29,1 | 1192/2860 | 110/249 |
| Minipleat - HEPA panel, 93mm, gel | BX2H14-B1Z5-C1_484x484x93 | H14 | 484 | 484 | 93 | 8,8 | 345/829 | 180/249 |
| Minipleat - HEPA panel, 93mm, gel | BX2H14-B1Z5-C1_500x500x93 | H14 | 500 | 500 | 93 | 9,5 | 374/890 | 180/249 |
| Minipleat - HEPA panel, 93mm, gel | BX2H14-B1Z5-C1_610x610x93 | H14 | 610 | 610 | 93 | 14,5 | 573/1374 | 180/249 |
| Minipleat - HEPA panel, 93mm, gel | BX2H14-B1Z5-C1_630x630x93 | H14 | 630 | 630 | 93 | 15,4 | 614/1473 | 180/249 |
| Minipleat - HEPA panel, 93mm, gel | BX2H14-B1Z5-C1_762x610x93 | H14 | 762 | 610 | 93 | 18 | 727/1745 | 180/249 |
| Minipleat - HEPA panel, 93mm, gel | BX2H14-B1Z5-C1_915x610x93 | H14 | 915 | 610 | 93 | 21,8 | 882/2117 | 180/249 |
| Minipleat - HEPA panel, 93mm, gel | BX2H14-B1Z5-C1_1220x610x93 | H14 | 1220 | 610 | 93 | 29,1 | 1192/2860 | 180/249 |

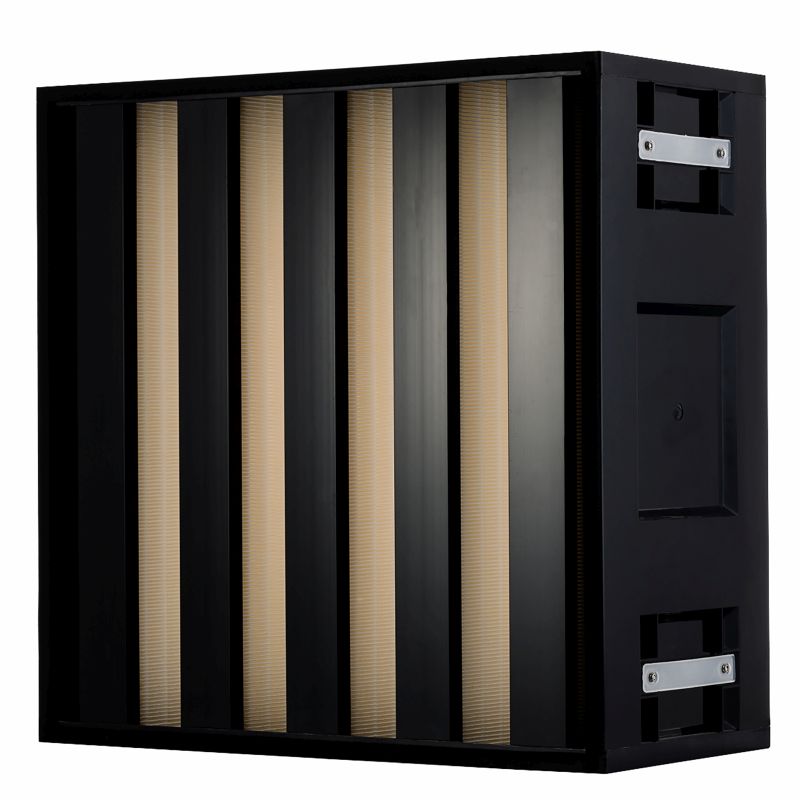

Box type HEPA Filter, E10 – H13, Kunststoffrahmen, V förmig angeordnete Faltenpakete
| Article | Art code SAP | Filter Class DIN 1822 | Frame material | Gasket (yes / no) | Width (mm) | Height (mm) | Depth (mm) | Surface Area (m²) | Airflow (m³/h) | Pressure Drop (Pa) | No. of Vbanks |
| Box type V HEPA | BX5E10-A3Z1-A6_287x592x292 | E10 | Plastic | yes | 287 | 592 | 292 | 8,7 | 1700 | 170/600 | 2V |
| Box type V HEPA | BX5E10-A1Z1-A6_592x287x292 | E10 | Plastic | yes | 592 | 287 | 292 | 7,8 | 1700 | 170/600 | 4V |
| Box type V HEPA | BX5E10-A1Z1-A6_592x592x292 | E10 | Plastic | yes | 592 | 592 | 292 | 17,6 | 3400 | 170/600 | 4V |
| Box type V HEPA | BX5E11-A3Z2-A6_287x592x292 | E11 | Plastic | yes | 287 | 592 | 292 | 8,7 | 1700 | 200/600 | 2V |
| Box type V HEPA | BX5E11-A1Z2-A6_592x287x292 | E11 | Plastic | yes | 592 | 287 | 292 | 7,8 | 1700 | 200/600 | 4V |
| Box type V HEPA | BX5E11-A1Z2-A6_592x592x292 | E11 | Plastic | yes | 592 | 592 | 292 | 17,6 | 3400 | 200/600 | 4V |
| Box type V HEPA | BX5E12-A3Z3-A6_287x592x292 | E12 | Plastic | yes | 287 | 592 | 292 | 8,7 | 1700 | 280/600 | 2V |
| Box type V HEPA | BX5E12-A1Z3-A6_592x287x292 | E12 | Plastic | yes | 592 | 287 | 292 | 7,8 | 1700 | 280/600 | 4V |
| Box type V HEPA | BX5E12-A1Z3-A6_592x592x292 | E12 | Plastic | yes | 592 | 592 | 292 | 17,6 | 3400 | 280/600 | 4V |
| Box type V HEPA | BX5H13-A7Z4-A6_592x287x292 | H13 | Plastic | yes | 592 | 287 | 292 | 7,8 | 1700 | 320/600 | 4V |
| Box type V HEPA | BX5H13-A7Z4-A6_592x592x292 | H13 | Plastic | yes | 592 | 592 | 292 | 17,6 | 3400 | 320/600 | 4V |
| Box type V HEPA | BX5H14-A7Z5-A6_592x287x292 | H14 | Plastic | yes | 592 | 287 | 292 | 7,8 | 1700 | 360/600 | 4V |
| Box type V HEPA | BX5H14-A7Z5-A6_592x592x292 | H14 | Plastic | yes | 592 | 592 | 292 | 17,6 | 3400 | 360/600 | 4V |

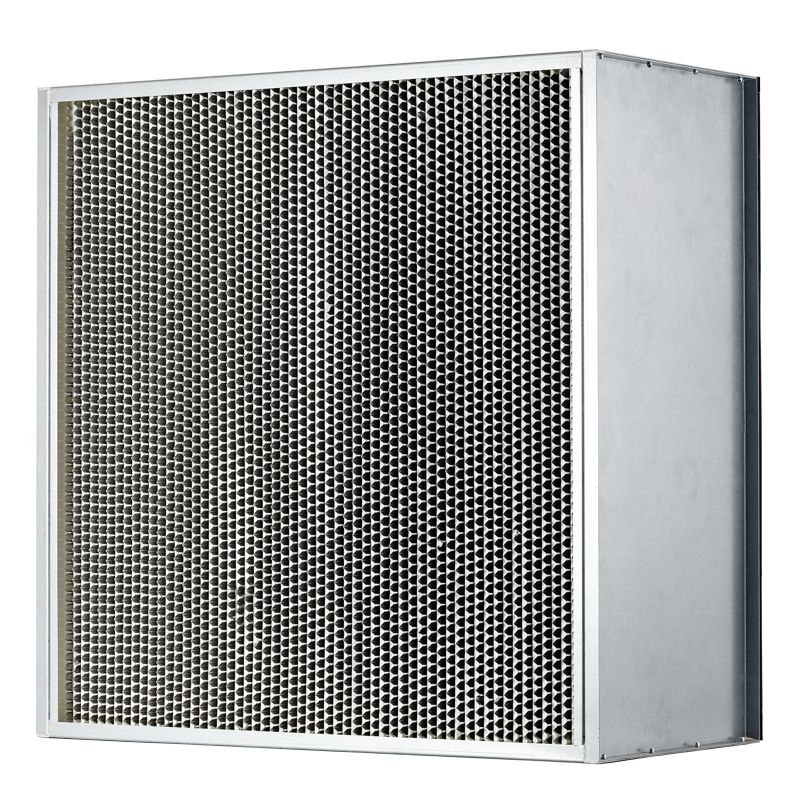

Box type EPA und HEPA Filter, galvanisierter Stahlblechrahmen, mit Dichtung, ohne Griffschutz in Bautiefen 150mm, 220mm, 292mm
| Article name | Art code SAP | Filter Class DIN 1822 | Width (mm) | Height (mm) | Depth (mm) | Surface Area (m²) | Airflow (m³/h) | Pressure Drop (Pa) | Pressure Drop (Pa) |
|---|---|---|---|---|---|---|---|---|---|
| HEPA box type 150mm | BX4E10-M3Z1-A1_305x305x150 | E10 | 305 | 305 | 150 | 1,8 | 234/360 | 110/165 | 350/500 |
| HEPA box type 150mm | BX4E10-M3Z1-A1_305x610x150 | E10 | 305 | 610 | 150 | 3,7 | 510/720 | 110/165 | 350/500 |
| HEPA box type 150mm | BX4E10-M3Z1-A1_610x610x150 | E10 | 610 | 610 | 150 | 8,3 | 1080/1680 | 110/165 | 350/500 |
| HEPA box type 150mm | BX4E10-M3Z1-A1_762x610x150 | E10 | 762 | 610 | 150 | 10,5 | 2002/2160 | 110/165 | 350/500 |
| HEPA box type 150mm | BX4E11-M3Z2-A1_305x305x150 | E11 | 305 | 305 | 150 | 1,8 | 234/360 | 130/165 | 350/500 |
| HEPA box type 150mm | BX4E11-M3Z2-A1_305x610x150 | E11 | 305 | 610 | 150 | 3,7 | 510/720 | 130/165 | 350/500 |
| HEPA box type 150mm | BX4E11-M3Z2-A1_610x610x150 | E11 | 610 | 610 | 150 | 8,3 | 1080/1680 | 130/165 | 350/500 |
| HEPA box type 150mm | BX4E11-M3Z2-A1_762x610x150 | E11 | 762 | 610 | 150 | 10,5 | 2002/2160 | 130/165 | 350/500 |
| HEPA box type 150mm | BX4E12-M3Z3-A1_305x305x150 | E12 | 305 | 305 | 150 | 1,8 | 234/360 | 150/165 | 350/500 |
| HEPA box type 150mm | BX4E12-M3Z3-A1_305x610x150 | E12 | 305 | 610 | 150 | 3,7 | 510/720 | 150/165 | 350/500 |
| HEPA box type 150mm | BX4E12-M3Z3-A1_610x610x150 | E12 | 610 | 610 | 150 | 8,3 | 1080/1680 | 150/165 | 350/500 |
| HEPA box type 150mm | BX4E12-M3Z3-A1_762x610x150 | E12 | 762 | 610 | 150 | 10,5 | 2002/2160 | 150/165 | 350/500 |
| HEPA box type 150mm | BX4H13-M3Z4-A1_305x305x150 | H13 | 305 | 305 | 150 | 1,8 | 234/360 | 180/210 | 500 |
| HEPA box type 150mm | BX4H13-M3Z4-A1_305x610x150 | H13 | 305 | 610 | 150 | 3,7 | 510/720 | 180/210 | 500 |
| HEPA box type 150mm | BX4H13-M3Z4-A1_610x610x150 | H13 | 610 | 610 | 150 | 8,3 | 1080/1680 | 180/210 | 500 |
| HEPA box type 150mm | BX4H13-M3Z4-A1_762x610x150 | H13 | 762 | 610 | 150 | 10,5 | 2002/2160 | 180/210 | 500 |
| HEPA box type 150mm | BX4H14-M3Z5-A1_305x305x150 | H14 | 305 | 305 | 150 | 1,8 | 234/360 | 200/230 | 500 |
| HEPA box type 150mm | BX4H14-M3Z5-A1_305x610x150 | H14 | 305 | 610 | 150 | 3,7 | 510/720 | 200/230 | 500 |
| HEPA box type 150mm | BX4H14-M3Z5-A1_610x610x150 | H14 | 610 | 610 | 150 | 8,3 | 1080/1680 | 200/230 | 500 |
| HEPA box type 150mm | BX4H14-M3Z5-A1_762x610x150 | H14 | 762 | 610 | 150 | 10,5 | 2002/2160 | 200/230 | 500 |
| HEPA box type 220mm | BX4E10-M2Z1-A1_305x305x220 | E10 | 305 | 305 | 220 | 2,8 | 354/456 | 110/165 | 350/500 |
| HEPA box type 220mm | BX4E10-M2Z1-A1_305x610x220 | E10 | 305 | 610 | 220 | 5,9 | 752/1002 | 110/165 | 350/500 |
| HEPA box type 220mm | BX4E10-M2Z1-A1_610x610x220 | E10 | 610 | 610 | 220 | 13,2 | 1586/2112 | 110/165 | 350/500 |
| HEPA box type 220mm | BX4E10-M2Z1-A1_762x610x220 | E10 | 762 | 610 | 220 | 16,7 | 2160/2670 | 110/165 | 350/500 |
| HEPA box type 220mm | BX4E11-M2Z2-A1_305x305x220 | E11 | 305 | 305 | 220 | 2,8 | 354/456 | 130/165 | 350/500 |
| HEPA box type 220mm | BX4E11-M2Z2-A1_305x610x220 | E11 | 305 | 610 | 220 | 5,9 | 752/1002 | 130/165 | 350/500 |
| HEPA box type 220mm | BX4E11-M2Z2-A1_610x610x220 | E11 | 610 | 610 | 220 | 13,2 | 1586/2112 | 130/165 | 350/500 |
| HEPA box type 220mm | BX4E11-M2Z2-A1_762x610x220 | E11 | 762 | 610 | 220 | 16,7 | 2160/2670 | 130/165 | 350/500 |
| HEPA box type 220mm | BX4E12-M2Z3-A1_305x305x220 | E12 | 305 | 305 | 220 | 2,8 | 354/456 | 150/165 | 350/500 |
| HEPA box type 220mm | BX4E12-M2Z3-A1_305x610x220 | E12 | 305 | 610 | 220 | 5,9 | 752/1002 | 150/165 | 350/500 |
| HEPA box type 220mm | BX4E12-M2Z3-A1_610x610x220 | E12 | 610 | 610 | 220 | 13,2 | 1586/2112 | 150/165 | 350/500 |
| HEPA box type 220mm | BX4E12-M2Z3-A1_762x610x220 | E12 | 762 | 610 | 220 | 16,7 | 2160/2670 | 150/165 | 350/500 |
| HEPA box type 220mm | BX4H13-M2Z4-A1_305x305x220 | H13 | 305 | 305 | 220 | 2,8 | 354/456 | 250/250 | 500/500 |
| HEPA box type 220mm | BX4H13-M2Z4-A1_305x610x220 | H13 | 305 | 610 | 220 | 5,9 | 752/1002 | 250/250 | 500/500 |
| HEPA box type 220mm | BX4H13-M2Z4-A1_610x610x220 | H13 | 610 | 610 | 220 | 13,2 | 1586/2112 | 250/250 | 500/500 |
| HEPA box type 220mm | BX4H13-M2Z4-A1_762x610x220 | H13 | 762 | 610 | 220 | 16,7 | 2160/2670 | 250/250 | 500/500 |
| HEPA box type 220mm | BX4H14-M2Z5-A1_305x305x220 | H14 | 305 | 305 | 220 | 2,8 | 354/456 | 250/250 | 500/500 |
| HEPA box type 220mm | BX4H14-M2Z5-A1_305x610x220 | H14 | 305 | 610 | 220 | 5,9 | 752/1002 | 250/250 | 500/500 |
| HEPA box type 220mm | BX4H14-M2Z5-A1_610x610x220 | H14 | 610 | 610 | 220 | 13,2 | 1586/2112 | 250/250 | 500/500 |
| HEPA box type 220mm | BX4H14-M2Z5-A1_762x610x220 | H14 | 762 | 610 | 220 | 16,7 | 2160/2670 | 250/250 | 500/500 |
| HEPA box type 292mm | BX4E10-M1Z1-A1_305x305x292 | E10 | 305 | 305 | 292 | 3,9 | 384/600 | 110/165 | 350/500 |
| HEPA box type 292mm | BX4E10-M1Z1-A1_305x610x292 | E10 | 305 | 610 | 292 | 8,2 | 900/1320 | 110/165 | 350/500 |
| HEPA box type 292mm | BX4E10-M1Z1-A1_610x610x292 | E10 | 610 | 610 | 292 | 18,1 | 1920/3000 | 110/165 | 350/500 |
| HEPA box type 292mm | BX4E10-M1Z1-A1_762x610x292 | E10 | 762 | 610 | 292 | 23 | 2400/3600 | 110/165 | 350/500 |
| HEPA box type 292mm | BX4E11-M1Z2-A1_305x305x292 | E11 | 305 | 305 | 292 | 3,9 | 384/600 | 130/165 | 350/500 |
| HEPA box type 292mm | BX4E11-M1Z2-A1_305x610x292 | E11 | 305 | 610 | 292 | 8,2 | 900/1320 | 130/165 | 350/500 |
| HEPA box type 292mm | BX4E11-M1Z2-A1_610x610x292 | E11 | 610 | 610 | 292 | 18,1 | 1920/3000 | 130/165 | 350/500 |
| HEPA box type 292mm | BX4E11-M1Z2-A1_762x610x292 | E11 | 762 | 610 | 292 | 23 | 2400/3600 | 130/165 | 350/500 |
| HEPA box type 292mm | BX4E12-M1Z3-A1_305x305x292 | E12 | 305 | 305 | 292 | 3,9 | 384/600 | 150/165 | 350/500 |
| HEPA box type 292mm | BX4E12-M1Z3-A1_305x610x292 | E12 | 305 | 610 | 292 | 8,2 | 900/1320 | 150/165 | 350/500 |
| HEPA box type 292mm | BX4E12-M1Z3-A1_610x610x292 | E12 | 610 | 610 | 292 | 18,1 | 1920/3000 | 150/165 | 350/500 |
| HEPA box type 292mm | BX4E12-M1Z3-A1_762x610x292 | E12 | 762 | 610 | 292 | 23 | 2400/3600 | 150/165 | 350/500 |
| HEPA box type 292mm | BX4H13-M1Z4-A1_305x305x292 | H13 | 305 | 305 | 292 | 3,9 | 384/600 | 250/250 | 500/500 |
| HEPA box type 292mm | BX4H13-M1Z4-A1_305x610x292 | H13 | 305 | 610 | 292 | 8,2 | 900/1320 | 250/250 | 500/500 |
| HEPA box type 292mm | BX4H13-M1Z4-A1_610x610x292 | H13 | 610 | 610 | 292 | 18,1 | 1920/3000 | 250/250 | 500/500 |
| HEPA box type 292mm | BX4H13-M1Z4-A1_762x610x292 | H13 | 762 | 610 | 292 | 23 | 2400/3600 | 250/250 | 500/500 |
| HEPA box type 292mm | BX4H14-M1Z5-A1_305x305x292 | H14 | 305 | 305 | 292 | 3,9 | 384/600 | 250/250 | 500/500 |
| HEPA box type 292mm | BX4H14-M1Z5-A1_305x610x292 | H14 | 305 | 610 | 292 | 8,2 | 900/1320 | 250/250 | 500/500 |
| HEPA box type 292mm | BX4H14-M1Z5-A1_610x610x292 | H14 | 610 | 610 | 292 | 18,1 | 1920/3000 | 250/250 | 500/500 |
| HEPA box type 292mm | BX4H14-M1Z5-A1_762x610x292 | H14 | 762 | 610 | 292 | 23 | 2400/3600 | 250/250 | 500/500 |
